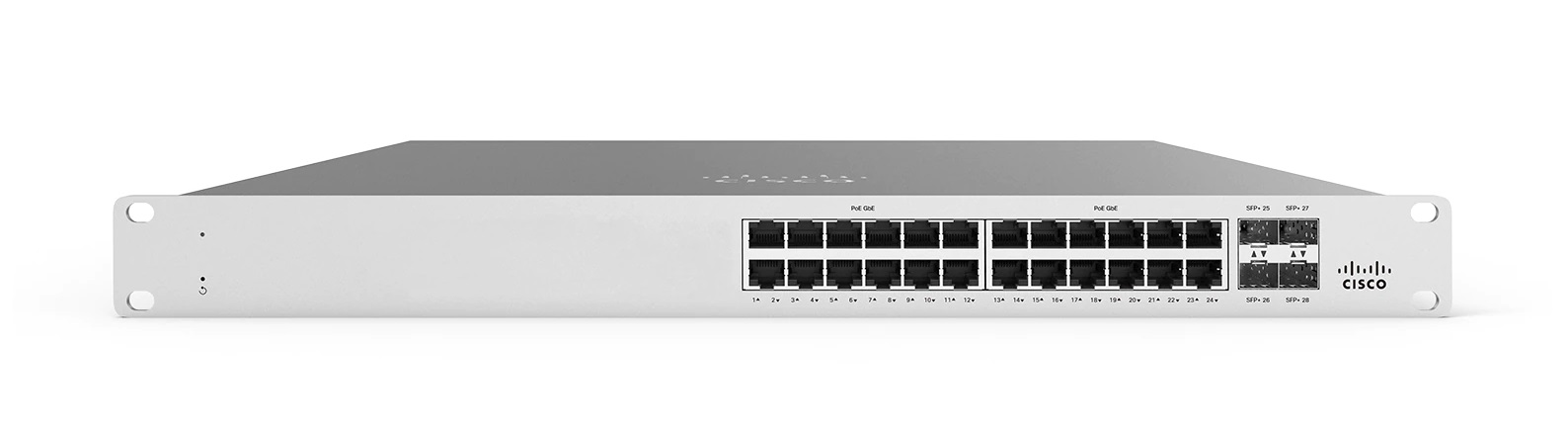

Meraki MS125-24

Switch ports

Power/PoE

Hardware platform

Cloud management

Switching capabilities

Interfaces

24 × 10/100/1000BASE-T Ethernet (RJ45)

4 × 10G SFP+ ports for uplinks

Auto-negotiation and crossover detection

Management

Managed via the Web with the Meraki cloud management platform

Integrated with Meraki wireless and complete portfolio of IT products and solutions

Zero-touch remote provisioning (no staging needed)

Detailed historical per-port and per-client usage statistics

Operating system, device, and hostname fingerprinting

SNMP and SYSLOG support for integration with other network management solutions

Automatic firmware upgrades with scheduling control

Remote Diagnostics

Email, SMS, and Mobile push notification alerts

Ping, traceroute, cable testing, and link failure detection with alerting

Remote packet capture

Dynamic and interactive network discovery and topology

Combined event and configuration change logs with instant search

Stacking

Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet Switching Capabilities

802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)

802.1Q VLAN and trunking support for up to 4,094 VLANs

802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)

STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD

802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)

802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches

Port mirroring

IGMP snooping for multicast filtering

MAC forwarding entries: 16K

Security

Integrated multi-factor authentication for cloud management platform

Role-based access control (RBAC) with granular device and configuration control

Corporate-wide password policy enforcement

IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing

Single-Host/Multi-Domain/Multi-Host/Multi Authentication

Port security: Sticky MAC, MAC whitelisting

DHCP snooping, detection and blocking

IPv4 and IPv6 ACLs

Performance

Switching capacity: 128 Gbps

Forwarding rate: 95.23 mpps

Jumbo frame support (9578 byte Ethernet frame)

Flow control

Layer 3

DHCP Relay

Power

Power input: 100-240V~, 50-60Hz

MS125-24: 10.3-25.6 W max, fanless

MS125-24P: 25-426.1 W

Mounting

1U Rack-mountable with included rack mount hardware

2-post front mounting options available

Environment

Operating temperature: 0°C to 45°C 0°C - 40°C at sea level 0°C - 35°C at 10,000 feet for MS125-24 when using MA-SFP-10GB-ER

Humidity: 5 to 95% RH

Regulatory

CSA-US (US, Canada)

FCC (USA)

IC (Canada)

CE (Europe)

RCM (Australia/New Zealand)

RoHS

Warranty

Full lifetime hardware warranty with next-day advanced replacement included

MTBF at 25°C

MS125-24-HW: 1,957,381

MS125-24P-HW: 294,713

Physical Specifications (H × W × D)

MS125-24-HW

• 1.73” × 17.32” × 9.84” (4.40 × 44 × 25cm)
• 8.15 lb (3.70 kg)

MS125-24P-HW

• 1.73” × 17.32” × 9.84” (4.40 × 44 × 25cm)
• 9.25 lb (4.20 kg)
