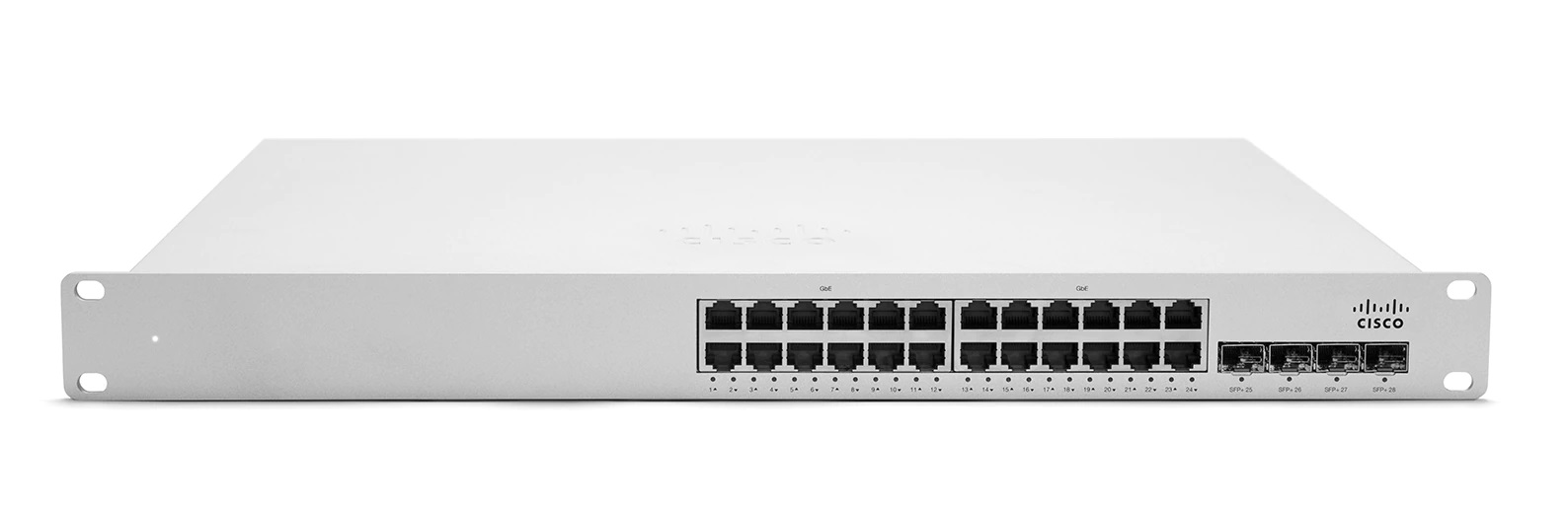

Meraki MS350-24

Switch ports/stacking ports

Power/PoE

Hardware platform

Cloud management

Switching capabilities

Interfaces

24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover

48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS350-24P model, available on all ports (maximum of 30W per port for PoE+)

4 × SFP+ 10 Gigabit Ethernet interfaces for uplink

2 × Stacking interfaces

Auto negotiation and crossover detection

Ethernet Switching Capabilities

802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)

802.1Q VLAN tagging with 4,094 addressable tags

802.1D Spanning Tree Protocol (RSTP, STP)

802.1ab Link Layer Discovery Protocol (LLDP)

802.3ad link aggregation with up to 8 ports per aggregate

Broadcast storm control

IGMP snooping for multicast filtering

MAC forwarding table entries: 96,000

Security

Integrated multi-factor authentication for Dashboard management

Role-based access control (RBAC) with granular device and configuration control

Corporate-wide password policy enforcement

IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing

Multi-Domain/Multi-Host/Multi Authentication

Port security: Sticky MAC, MAC whitelisting

DHCP snooping, detection and blocking, Dynamic ARP Inspection

STP Enhancements: BPDU guard, Root guard, Loop guard

IPv4 and IPv6 ACLs

Performance

Non-blocking fabric

128 Gbps non-blocking switching capacity

2.5 microsecond latency

Power over Ethernet (MS350-24P):

802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port

Maximum PoE output: 370 W

PoE available on all ports simultaneously

Pre-standard PoE: supports pre-standard PoE devices

Management

Managed via the Web with the Meraki cloud management platform

Integrated with Meraki wireless and complete portfolio of IT products and solutions

No-touch remote deployment (no staging needed)

Detailed historical per-port and per-client usage statistics

DHCP and hostname fingerprinting

SNMP v2c

Seamless over-the-web firmware upgrades

Remote Diagnostics

Email and text alerts

Live remote packet capture

Aggregated event logs with instant search

Stacking

Unified configuration and monitoring of all switches

Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Physically stack up to 8 switches for added resiliency in high-throughput environments

Layer 3 Capabilities

Static routing

Dynamic routing (OSPFv2)

DHCP Server and Relay

Warm spare (VRRP) with DHCP Failover

Power

Power input: 100-240 VAC, 47-63 Hz

Power consumption

• MS350-24: 56-66 W max
• MS350-24P: 58-466 W max

Environment

Operating temperature: 0°C to 45°C

Humidity: 5 to 95% non-condensing

Variable speed fans

MTBF (at 25°C)

MS350-24: 808,000 hours

MS350-24P: 568,000 hours

Warranty

Full lifetime hardware warranty with next-day advanced replacement included

Physical Specifications (H × W × D)

MS350-24

• 1.74" × 19.1" × 20.4" (4.44 × 48.6 × 51.8 cm) with power supply fitted
• Weight: 12.37 lb (5.61 kg)

MS350-24P

• 1.74" × 19.1" × 20.4" (4.44 × 48.6 × 51.8 cm) with power supply fitted
• Weight: 13.14 lb (5.96 kg)
